ENKI, Milan, SH0015, Square Thermostatic Concealed Shower Set, Large 300mm Ultra Slim Wall Mounted Shower Head, Black

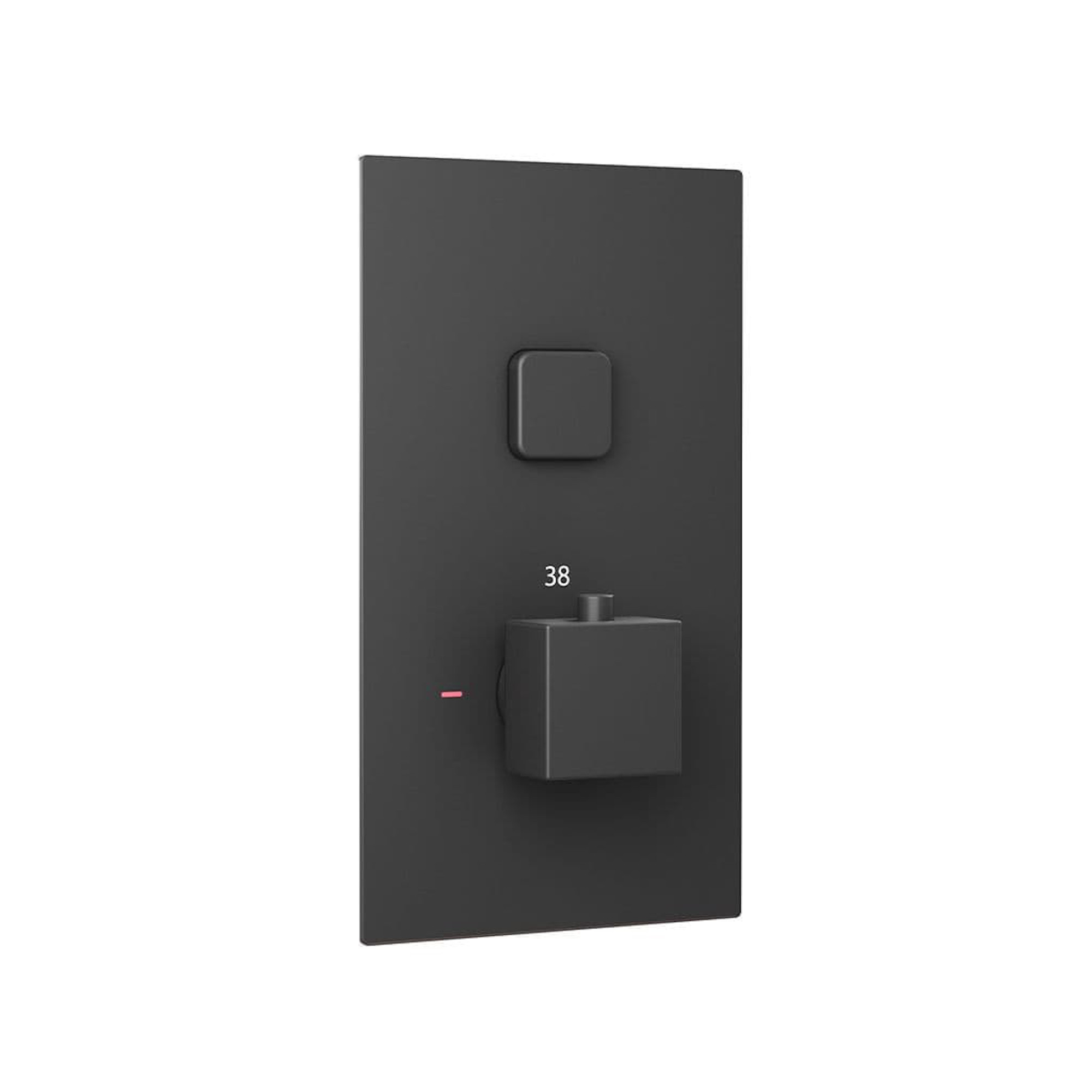

MILAN CONCEALED PUSH BUTTON THERMOSTATIC SHOWER MIXER VALVE

Single cast body, high-grade brass is featured in this premium quality valve. It is designed in a way that if maintenance is required whole valve does not require re-plumbing. Built-in anti-scald device means no more fluctuating water temperatures while showering.

• 3/4" hot/cold inlets with built-in non-return valves to prevent backflow

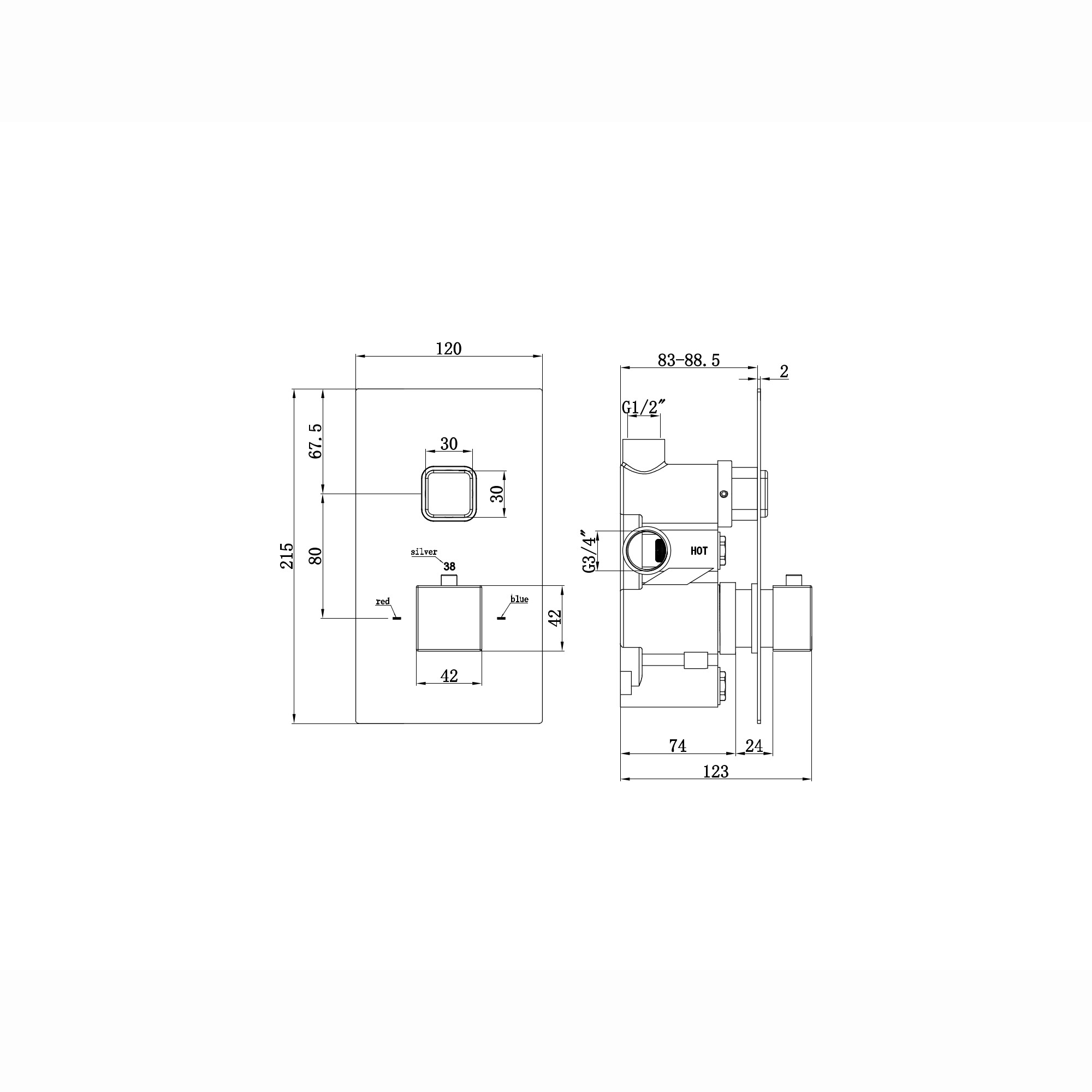

• For more dimensions please see technical drawing


• Push button 1 on/off for outlets 1


• Bottom dial: temperature control

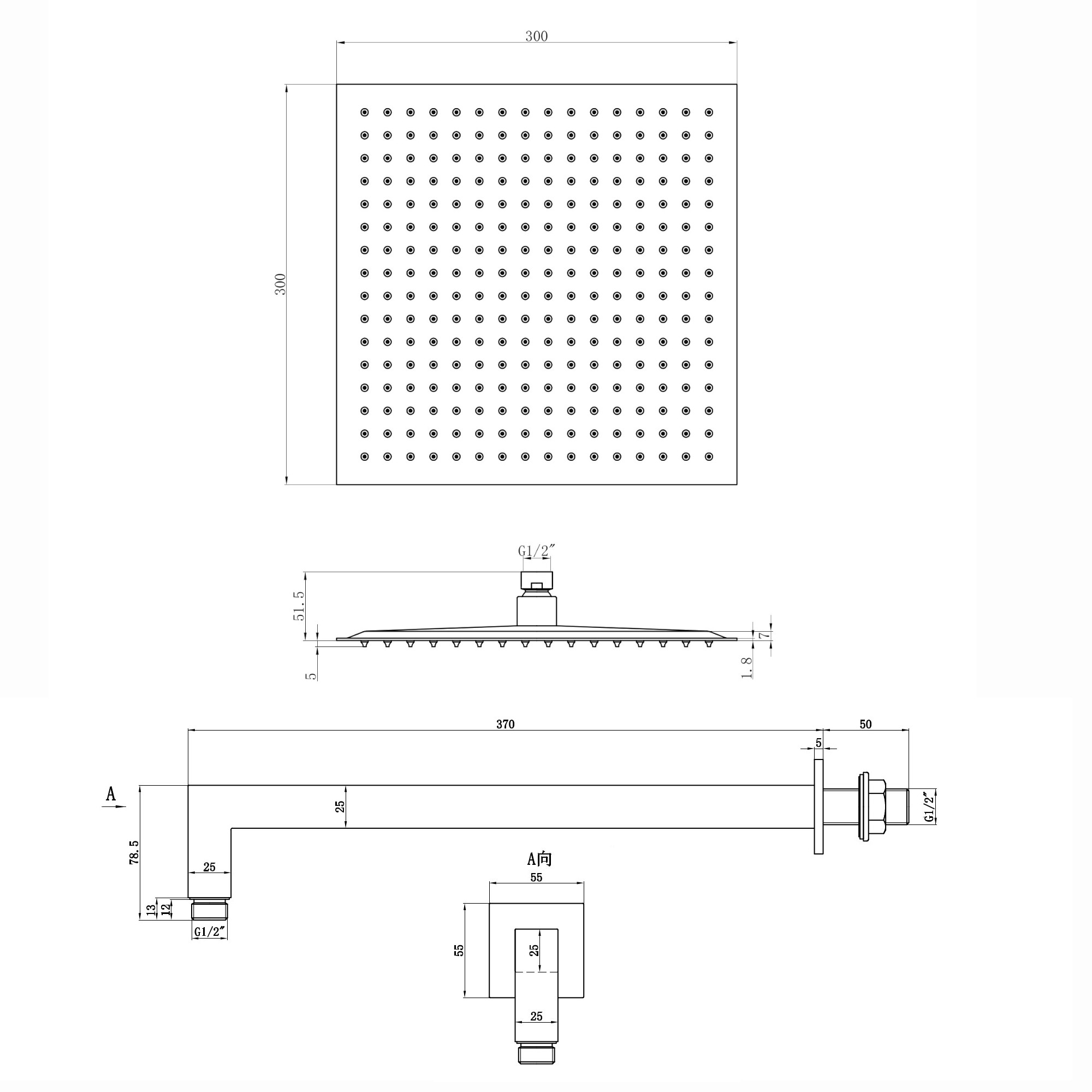

SHOWER HEAD & ARM

• Connection size - 1/2"


• Shower head size - 300 x 300mm

WORKING REQUIREMENTS

Suitable for all plumbing systems. Minimum water pressure required - 0.5 bar, though we recommend min. of 1.0 bar for best performance. Please note: shower valve will not work efficiently on a gravity fed tank system, unless a negative or universal pump is installed. Positive pumps will not work.

FLOW RATES

• 0.5 bar - 6 L/M


• 1.0 bar - 11 L/M


• 2.0 bar - 16.2 L/M


• 3.0 bar - 20 L/M


• 4.0 bar - 23 L/M


• 5.0 bar - 25.8 L/M

WHAT'S IN THE BOX?

• Thermostatic shower mixer valve x 1


• Shower head and arm x 1
