ENKI, Milan, SH0056, Square Thermostatic Concealed Push Button Shower Set, Wall Mounted Ultra Slim Shower & Handset Kit, Chrome
SKU: SH0056
Sold by: HOUSE OF ENKI
More details

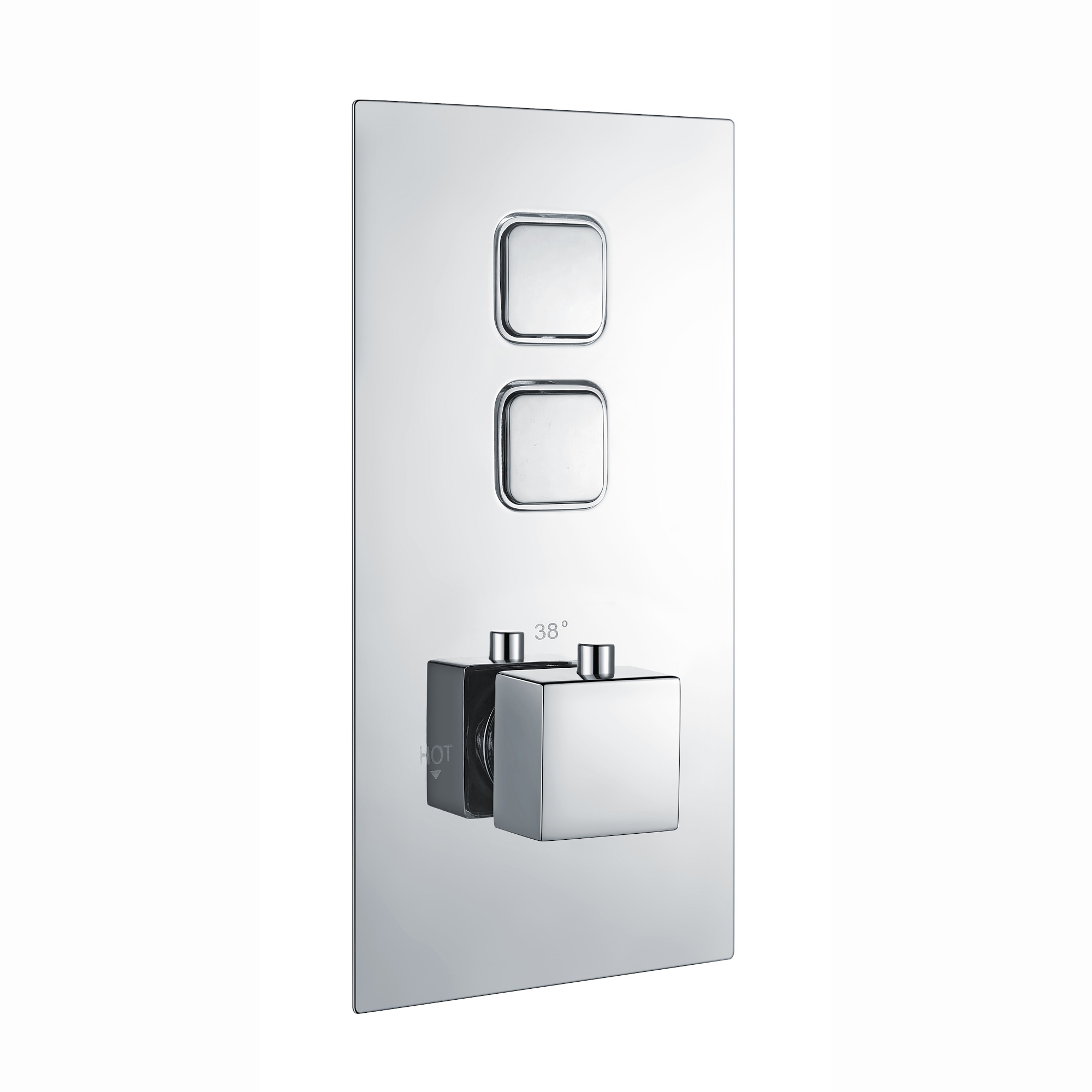

MILAN CONCEALED PUSH BUTTON THERMOSTATIC SHOWER MIXER VALVE
Single cast body, high-grade brass is featured in this premium quality valve. It is designed in a way that if maintenance is required whole valve does not require re-plumbing. Built-in anti-scald device means no more fluctuating water temperatures while showering.
- 3/4" hot/cold inlets with built-in non-return valves to prevent backflow

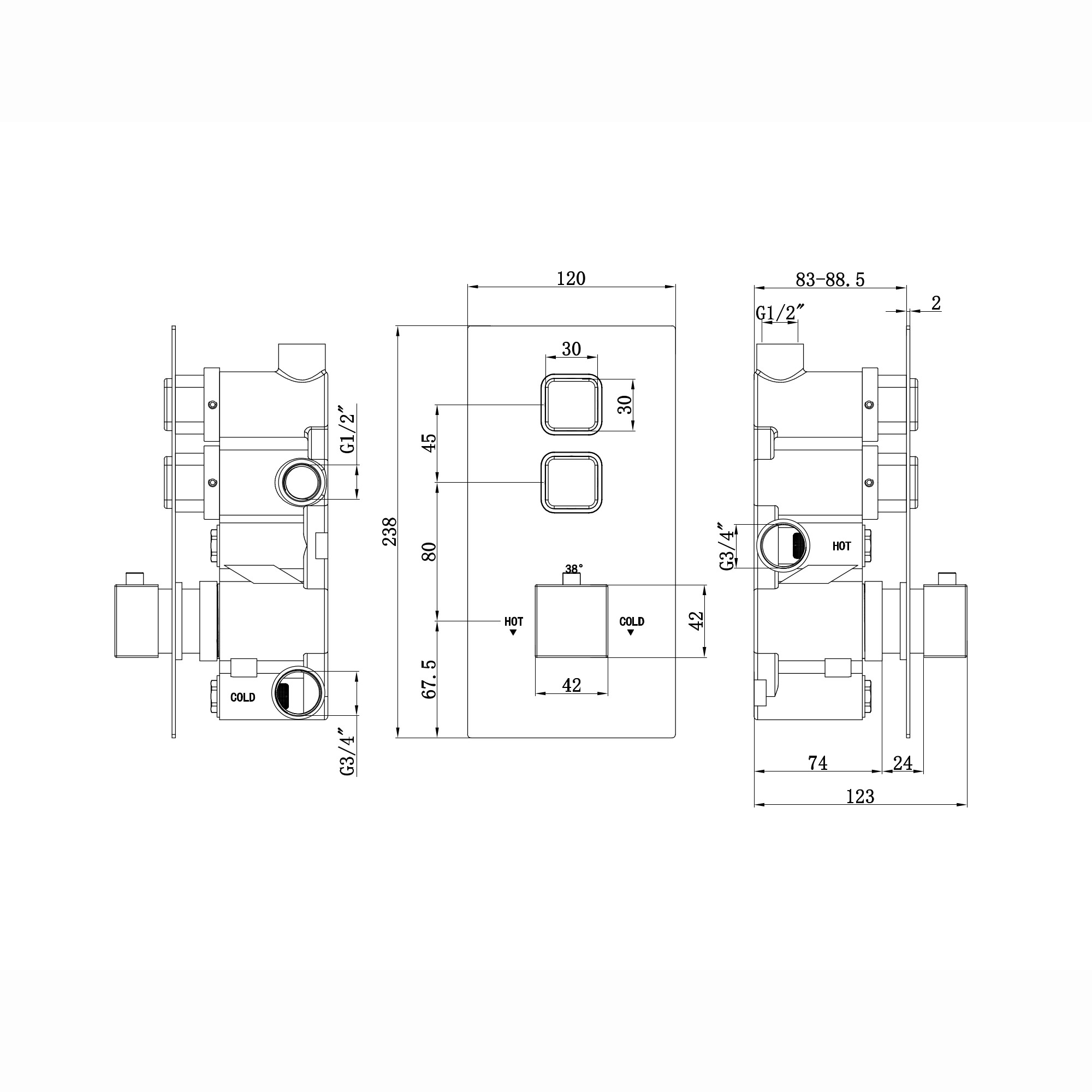

- For more dimensions please see technical drawing
- Push buttons 1, 2: on/off for outlets 1, 2
- Bottom dial: temperature control

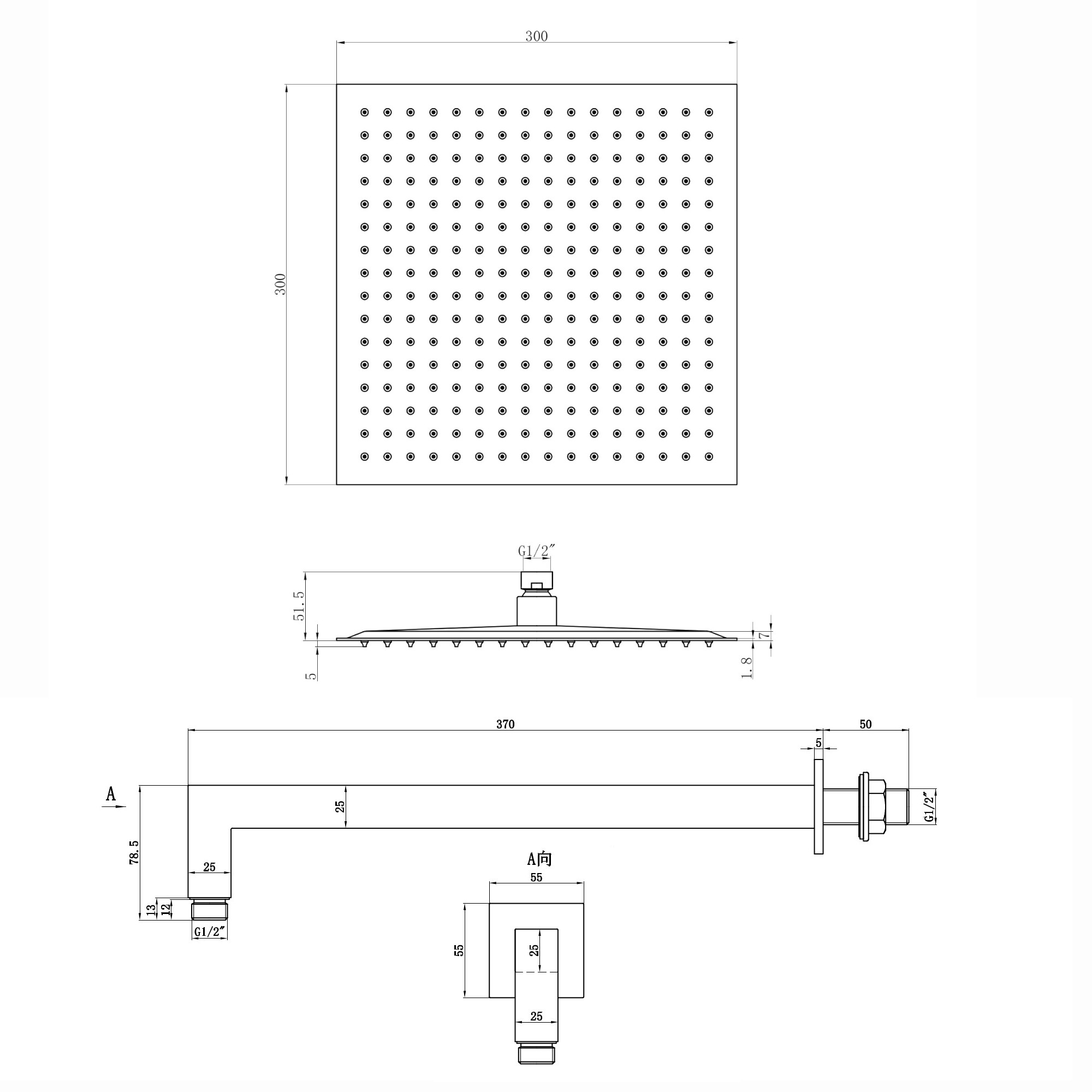

SHOWER HEAD & ARM
- Connection size - 1/2"

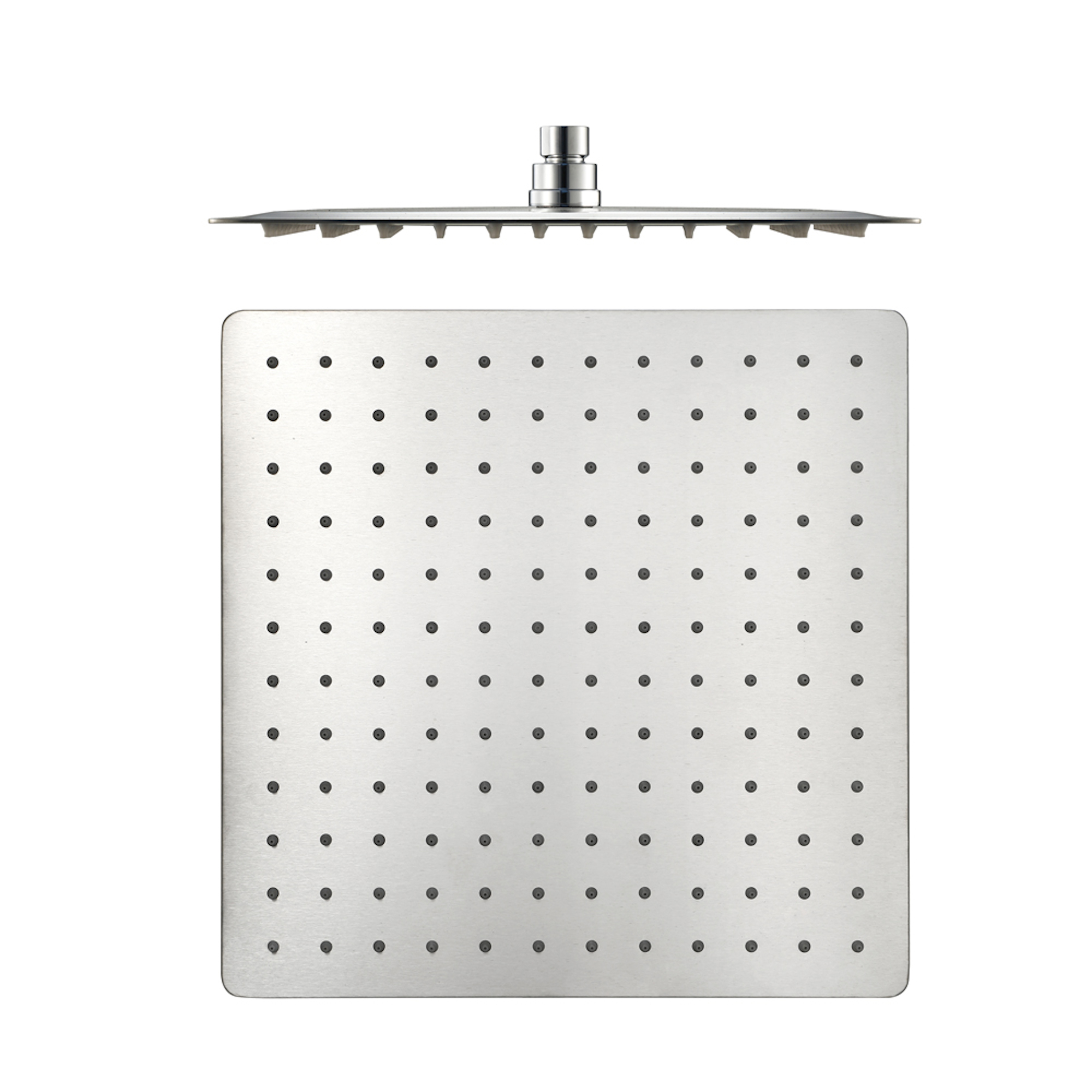

- Shower head size - 300 x 300mm

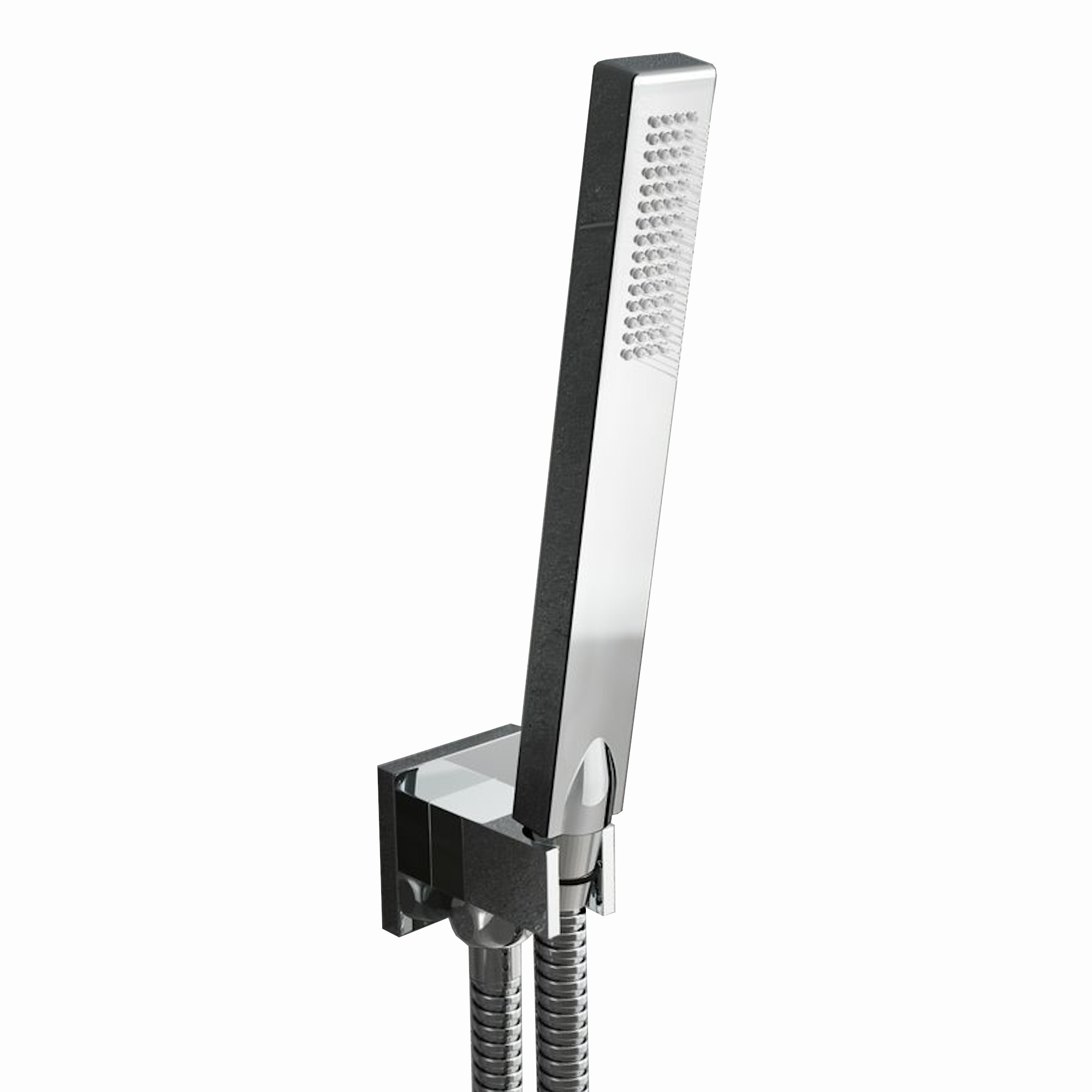

HANDSET KIT

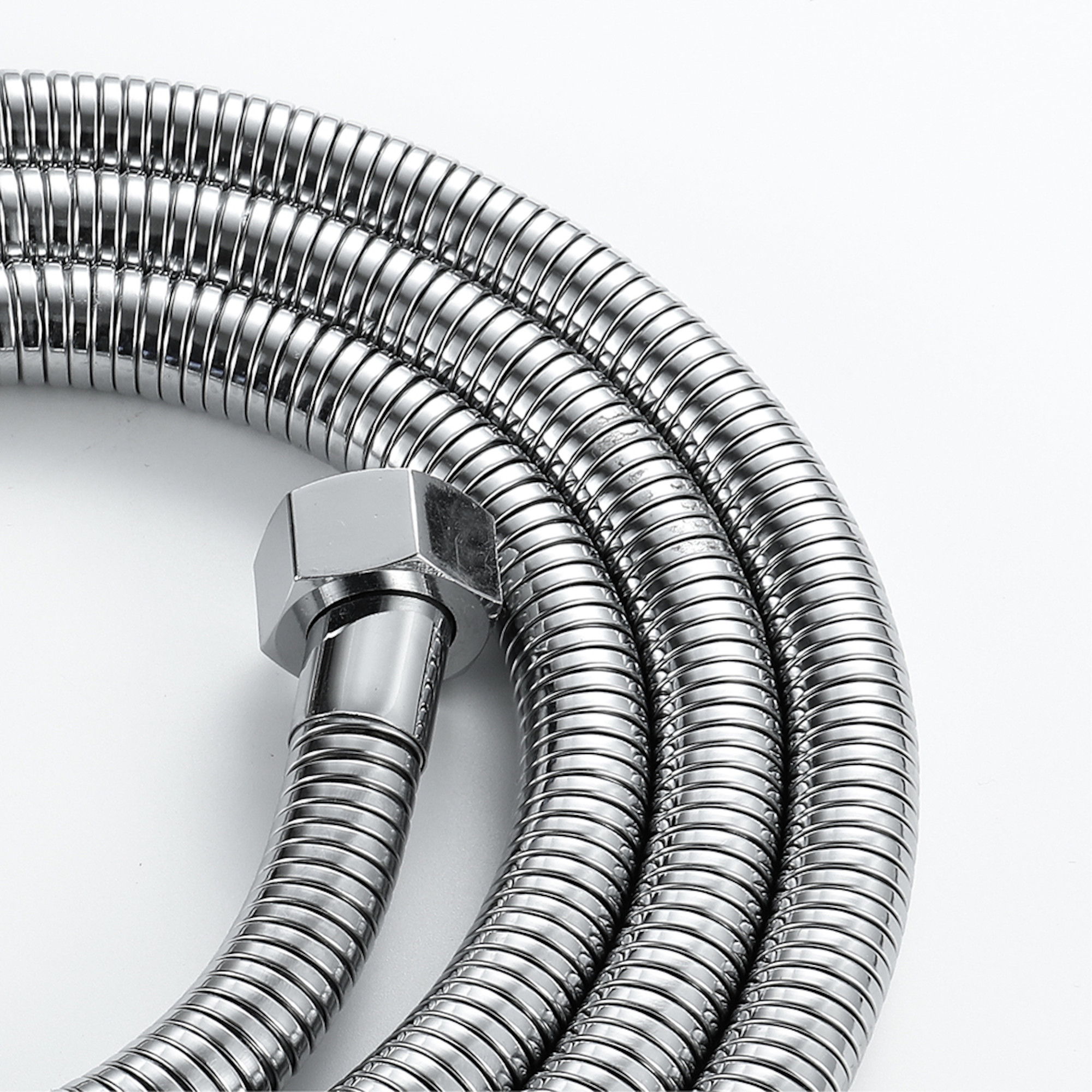

- Shower hose - 150cm

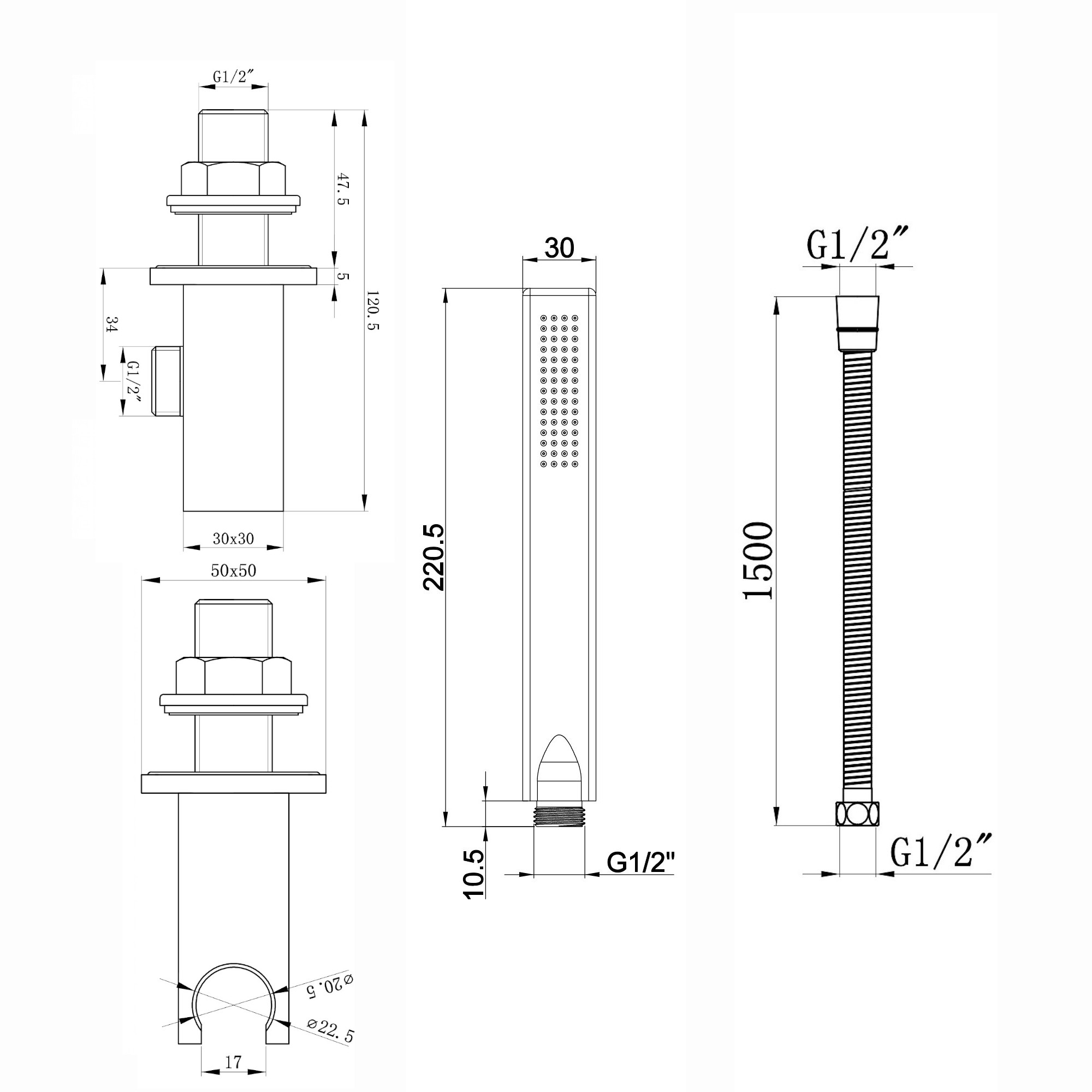

- For more dimensions please see technical drawings
WORKING REQUIREMENTS
Suitable for all plumbing systems. Minimum water pressure required - 0.5 bar, though we recommend min. of 1.0 bar for best performance. Please note: shower valve will not work efficiently on a gravity fed tank system, unless a negative or universal pump is installed. Positive pumps will not work.
FLOW RATES
- 0.5 bar - 6 L/M
- 1.0 bar - 11 L/M
- 2.0 bar - 16.2 L/M
- 3.0 bar - 20 L/M
- 4.0 bar - 23 L/M
- 5.0 bar - 25.8 L/M
WHAT'S IN THE BOX?
- Thermostatic shower mixer valve x 1
- Shower head and arm x 1
- Handheld shower, hose, wall outlet with bracket x 1
